SUSPENDED CARRYING IDLER								POLTEC CORPORATION

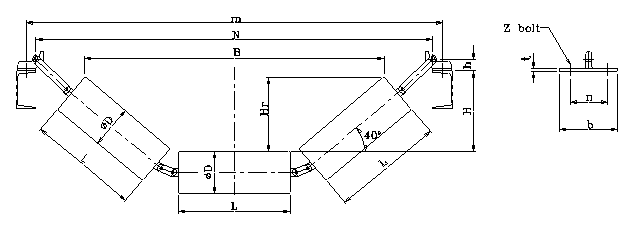

	Dimensional Details				Z BOLT(M12:BW 400-1200, M16:BW1400-2000, M20:BW2200-2400)
	Belt	Dimension									Unit = mm
	Width	øD	L	m	h	n	b	t	N	B	H	Hr
	750		365	1060					1000	709	210	177
	800	114.3	275	1085	33	100	160	6	1025	734	217	184
	900		315	1190					1130	835	241	209
	1000		350	1310					1270	933	254	234
	1050	139.8	370	1360	35	100	160	6	1300	984	267	246
	1200		420	1490					1430	1111	298	279
	1400		500	1730	39	120	190	9	1660	1319	337	331
	1600		580	1930					1860	1522	390	382
	1800	165.2	650	2220	40	120	190	9	2150	1723	482	432
	2000		730	2420					2350	1925	534	483
	2200		800	2620	45	150	250	12	2540	2128	589	533
	2400		800	2820					2740	2331	642	584
